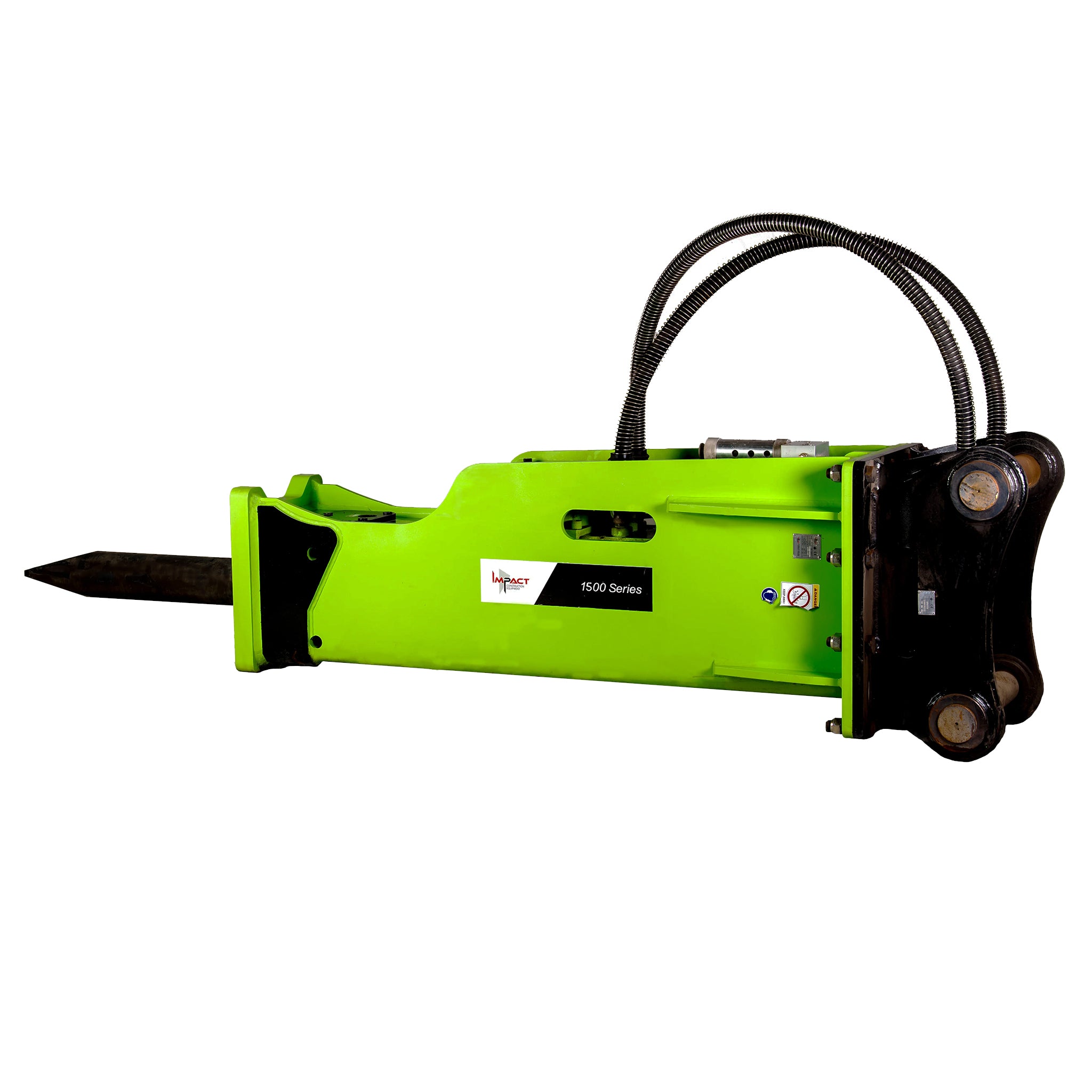

• 1500 Series Impact hydraulic Breaker

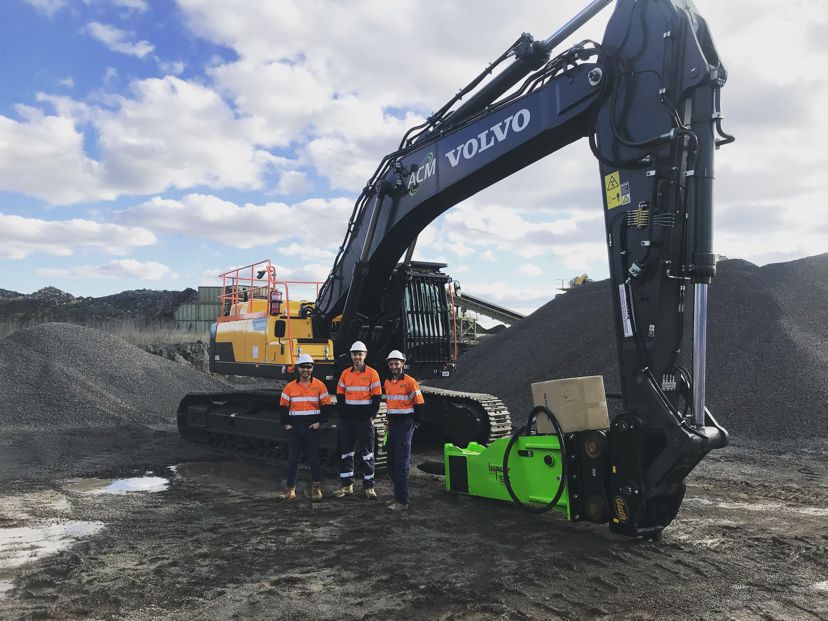

  • Three construction workers in high-visibility orange uniforms and white helmets standing in front of a large black Volvo excavator with a bright green attachment. The excavator is set against a backdrop of gravel piles and a partly cloudy sky

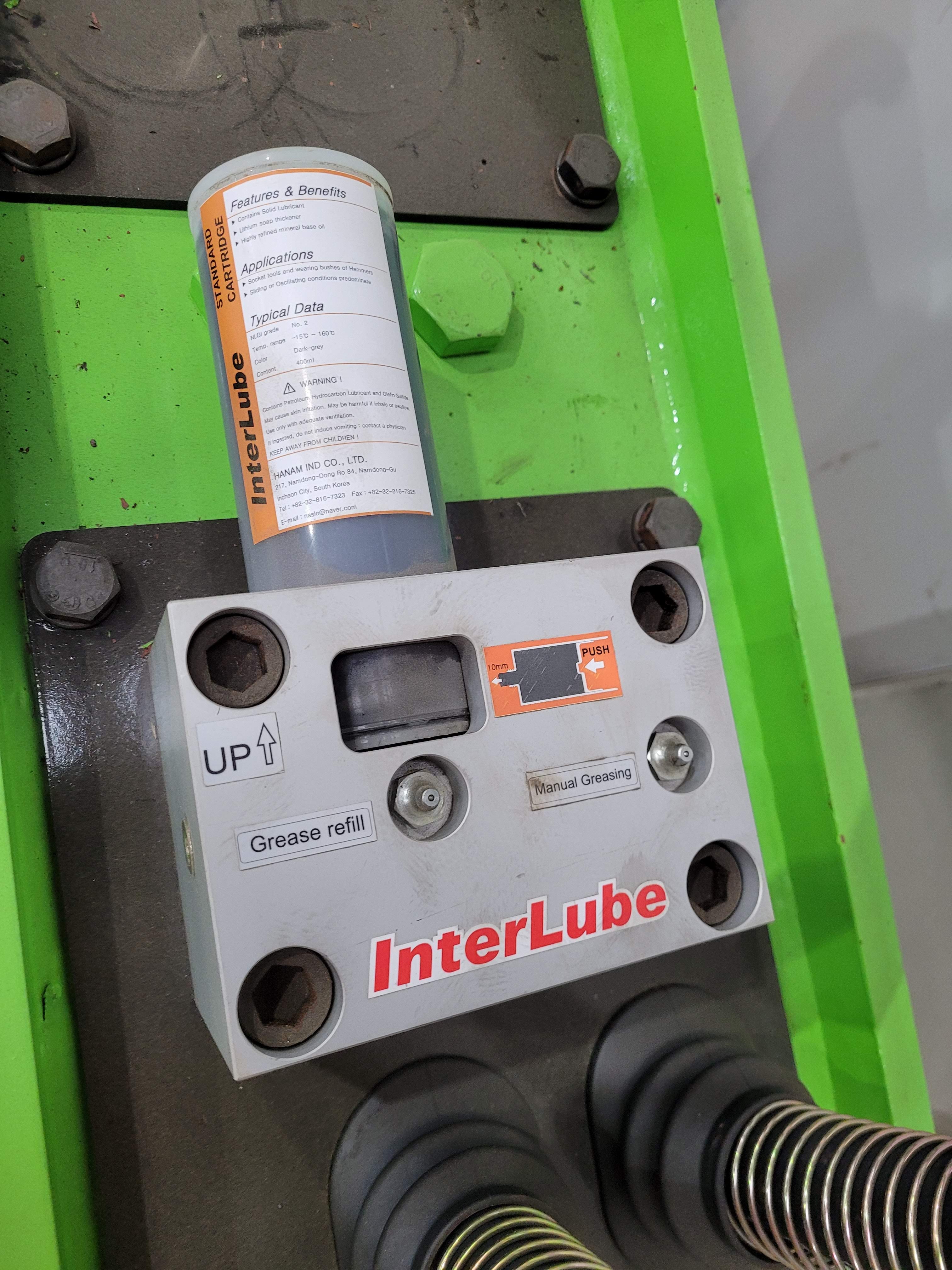

  • Close-up view of an InterLube grease refill system installed on heavy machinery, designed for automated lubrication and maintenance of equipment components.

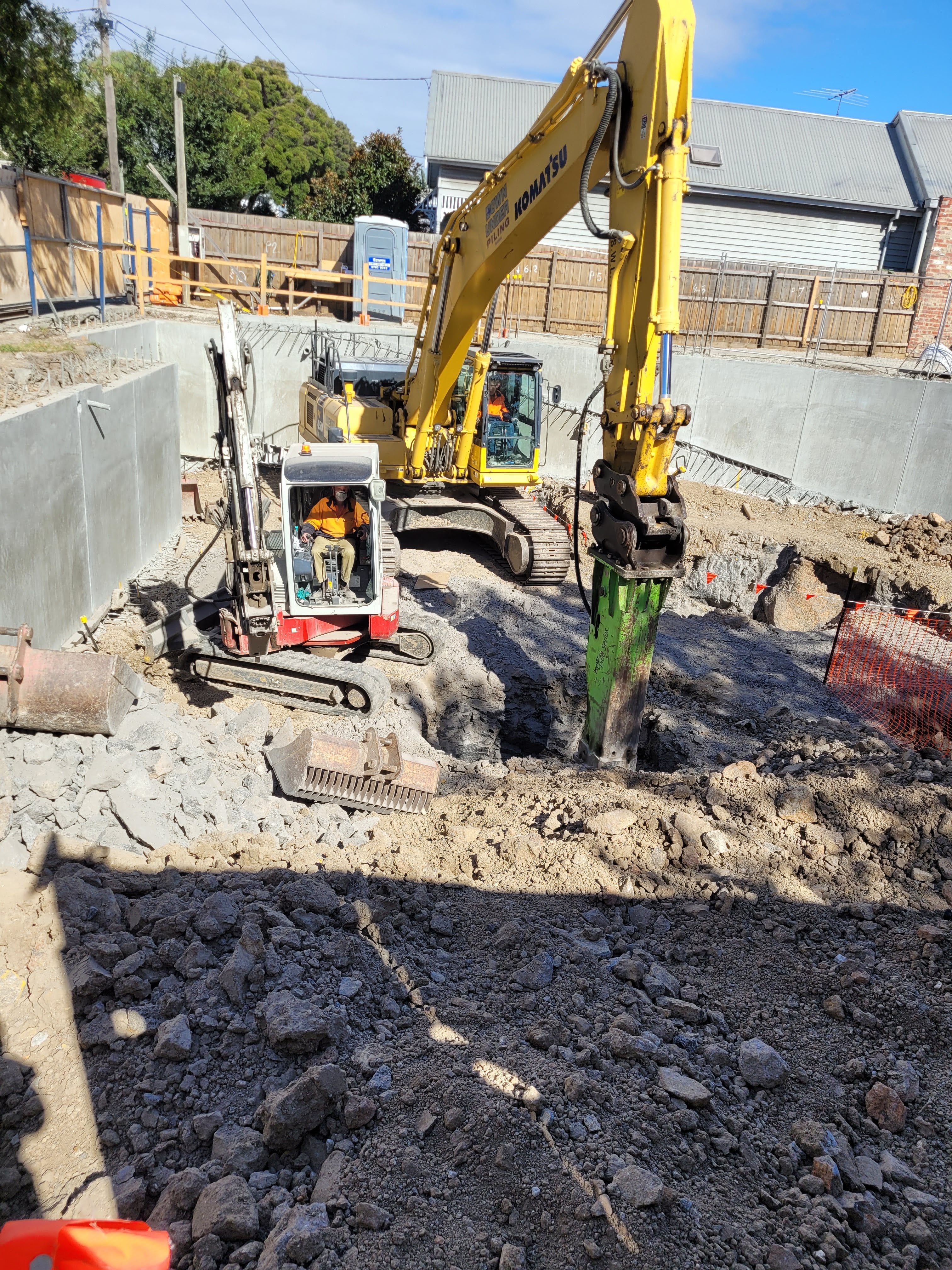

  • Excavation site featuring a Komatsu excavator equipped with an Impact hydraulic breaker and a mini excavator, performing rock-breaking tasks in a construction zone
  • InterLube automatic lubrication system, featuring a grease refill cartridge, designed for efficient and reliable maintenance of machinery in industrial applications

IHB1500 Hydraulic Breaker to suit 40-55T Excavator

  • 24-Month Warranty, Spare Moil & Excavator Fitment
Product Details

Suited for: 40-55T Excavator
Weight: 4155kgs
Operating pressure: 160-180 Bar
Req. flow: 210-290 lt/min
Tool diameter: 175mm
Impact energy: 18900 Joules

Pins: 90mm | Pin Centers: 510mm | Between the Ears: 410mm
Pins: 100mm | Pin Centers: 585mm | Between the Ears: 440mm
Pins: 100mm | Pin Centers: 515mm | Between the Ears: 440mm
Pins: 110mm | Pin Centers: 600mm | Between the Ears: 460mm

Includes: Spare Chisel, Hydraulic Hoses and Hydraulic Fittings

Warranty: 24-months (excludes hydraulic hoses and chisel)

Weight
4155 kg
Suited For
45-55T excavator
